TUGAS EVALUASI CNC ADITYA NOVIANTO

06.14  Unknown  No comments

EVALUASI PROGAM CNC TURN 2A RADIUS



    Langkah mengatur titik nol :

    • Facing benda kerjaKN=0 (offset Z) lalu dibibut rata
    • Ukur diameter BK setelah dibubutIP (offset X)= diameter yang telah dibubut tadi
    • Uji coba X dan Z (apakah sudah tepat)
    • Masukkan program lalu tekan auto
    • Ganti program “auto cont” dengan program “auto bloks”
    • Tekan tombol “cycle start” setiap melakukan satu program langkah kerja


    Evaluasi

    1.  Salah pengaturan titik nol sumbu X
    2.  Tidak memeriksa kepresisian jangka sorong saat mengukur titik nol sumbu X

    PROGRAM CUT VIEWER :

    (TOOL/STANDARD,32,55,0,7,0)
    (COLOR,255,255,255)
    N00 M03
    N01 G00 X23 Z1
    (STOCK/40,25,0,0)
    N02 G01 X23 Z-30 F60
    N03 G03 X25 Z-40 R12.5 F60
    N04 M99 I11.5 K10 F60
    N05 G00 X26 Z-40
    N06 G00 X26 Z1
    N07 G00 X21 Z1
    N08 G01 X21 Z-30 F60
    N09 G03 X25 Z-40 R12.5 F60
    N010 M99 I10.5 K10 F60
    N011 G00 X26 Z-40
    N012 G00 X26 Z1
    N013 G00 X19 Z1
    N014 G01 X19 Z-30 F60
    N015 G03 X25 Z-40 R12.5 F60
    N016 M99 I9.5 K10 F60
    N017 G00 X26 Z-40
    N018 G00 X26 Z1
    N019 G00 X17 Z1
    N020 G01 X17 Z-30 F60
    N021 G03 X25 Z-40 R12.5 F60
    N022 M99 I8.5 K10 F60
    N023 G00 X26 Z-40
    N024 G00 X26 Z1
    N025 G00 X15 Z1
    N026 G01 X15 Z-30 F60
    N027 G03 X25 Z-40 R12.5 F60
    N028 M99 I7.5 K10 F60
    N029 G00 X26 Z-40
    N030 G00 X26 Z1
    N031 G00 X13 Z1
    N032 G01 X13 Z-25 F60
    N033 G03 X15 Z-30 R7.5 F60
    N034 M99 I6.5 K5 F60
    N035 G00 X16 Z-30
    N036 G00 X16 Z1
    N037 G00 X11 Z1
    N038 G01 X11 Z-25 F60
    N039 G03 X15 Z-30 R7.5 F60
    N040 M99 I5.5 K5 F60
    N041 G00 X16 Z-30
    N042 G00 X16 Z1
    N043 G00 X9 Z1
    N044 G01 X9 Z-18 F60
    N045 G03 X10 Z-20 R7.5 F60
    N046 M99 I4.5 K7 F60
    N047 G01 X10 Z-25 F60
    N048 G03 X15 Z-30 R7.5 F60
    N049 M99 I5 K5 F60
    N050 G00 X16 Z-30
    N051 G00 X16 Z1
    N052 G00 X7 Z1
    N053 G01 X7 Z-18 F60
    N054 G03 X10 Z-20 R7.5 F60
    N055 M99 I3.5 K7 F60
    N056 G00 X11 Z-20
    N057 G00 X11 Z1
    N058 G00 X5 Z1
    N059 G01 X5 Z-18 F60
    N060 G03 X10 Z-20 R7.5 F60
    N061 M99 I2.5 K7 F60
    N062 G00 X11 Z-20
    N063 G00 X11 Z1
    N064 G00 X3 Z1
    N065 G01 X3 Z0 F60
    N066 G03 X5 Z-2.5 R2.5 F60
    N067 M99 I1.5 K2.5 F60
    N068 G00 X6 Z-2.5
    N069 G00 X6 Z1
    N070 G00 X0 Z1
    N071 G01 X0 Z0 F60
    N072 G03 X5 Z-2.5 R2.5 F60
    N073 G00 X6 Z-2.5
    N074 G00 X6 Z1
    N075 M05
    N076 M30

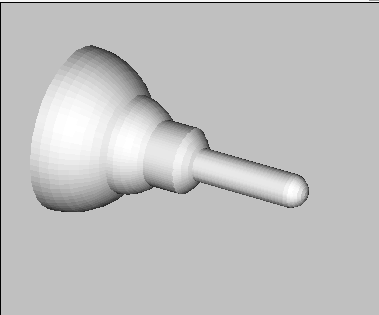

    Gambar PrintScreen :
